SolderPure

Basic Solder Fume Extractor
Ideal for one or two handheld soldering stations

• Portable system is extremely versatile
• System or table mounted arms available
• 3 stage filter system provides high efficiency protection that is easily accessed and serviced:
· 2″ pre-filter, 2″ HEPA filter 99.97%, 7 lbs chemical filter
• 100% fully adjustable fan speed control
• SPB-560 120V, 2A | SPB-565 230V, 1A | 22″H x 13″W x 16″D, 45 lbs.

---

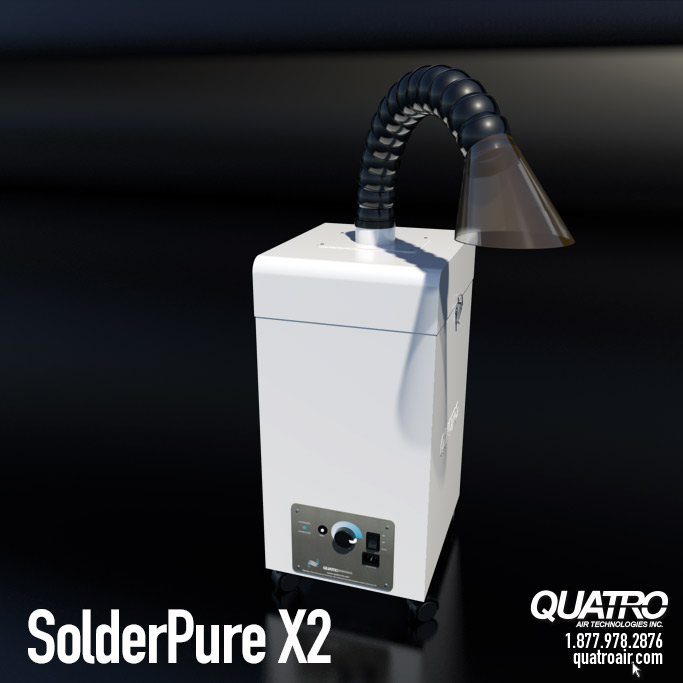

SolderPure X2

High Capacity Unit
Excellent choice for one or two high volume soldering stations

• Larger filters provide high capacity removal
• 3 stage filter system provides high efficiency protection
· 2″ pre-filter ,6″ HEPA filter 99.97%, 15 lbs chemical filter
• Motorized impeller provides increased airflow and suction capabilities
• System or table mounted arms available
• 100% fully adjustable fan speed control
• SPB-480 120V, 2.4A | SPB-485 230V, 1.2A | 28″H x 13″W x 16″D, 50 lbs.

---

SPH Mini

For manifolded filtration of solder fumes

• Compact all three in one cartridge
• Quick and easy service
• 100% fully adjustable fan speed control
• Perfect for space limited applications
• Ideal for field service work and repairs
• (10) 0.5″ dia. tubes, (4) 1″ dia. tubes , (2) 2″ dia. tubes or a single 3″ table mounted arm
• SPHm1161B 120V, 7A | SPHm1151B 230V, 3.5A | 19″H x 9″W x 9″D, 28 lbs.

---

SPH400

For multiple manifolded soldering stations

• LaserBlue gel seal incorporated to ensure zero by-pass
• 2″ pre-filter, 2″ HEPA filter 99.97%, 8″ chemical filter (30 lbs)
• (20) 0.5″ dia. tube , (10) 1″ dia. tube , (4) 2″ dia. tubes or (2) 3″ dia. duct run
• SPH-426 120V, 12A | SPH-425 230V, 7A | 22″H x 13″W x 16″D, 45 lbs

---

SPH 800

Intensive duty unit for multiple manifolded soldering stations

• Deep bed chemical filtration for added protection against harmful gases
• LaserBlue gel seal incorporated to ensure zero by-pass
• 2″ pre-filter, 2″ HEPA filter 99.97%, ???” chemical filter (60 lbs)
• (30) 0.5″ dia. tube , (15) 1″ dia. tube , (5) 2″ dia. tubes or (3) 3″ dia. duct run
• SPH-835 230V, 12A | 22″H x 13″W x 16″D, 85 lbs

---

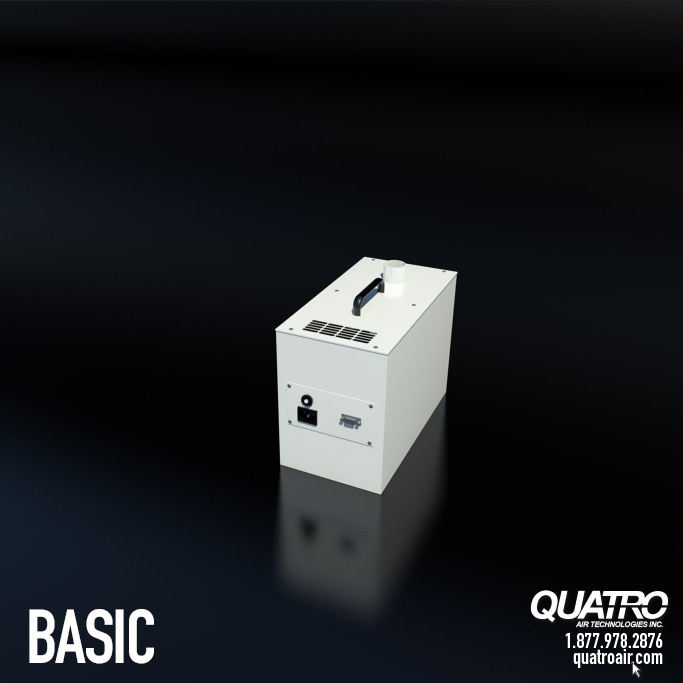

BASIC

Entry level, multipurpose solder fume extractor

• All in one customized disposable filter box
• Can incorporate combination of pre-filters, chemical and HEPA filters
• Can also be used as dust collector with disposable bag filters
• Capable of max. pressure 90” (22.5 KPa)
• Max. airflow 141 CFM (66 L/sec)
• 1.5” diameter inlet collar
• On/Off foot pedal control
• 16 x 7 x 10″, 22 lbs

---

DCS

Desktop Containment System

• Can be used for a variety of applications (chemical storage, gluing, painting, microscope and conformal coatings)
• Bench-top containment protects operators from harmful chemicals, vapors and particulates
• Illuminated interior provides a clear and bright work environment
• DCS-1000 120V, 2A | 29″H x 29″W x 17″D, 55 lbs

---

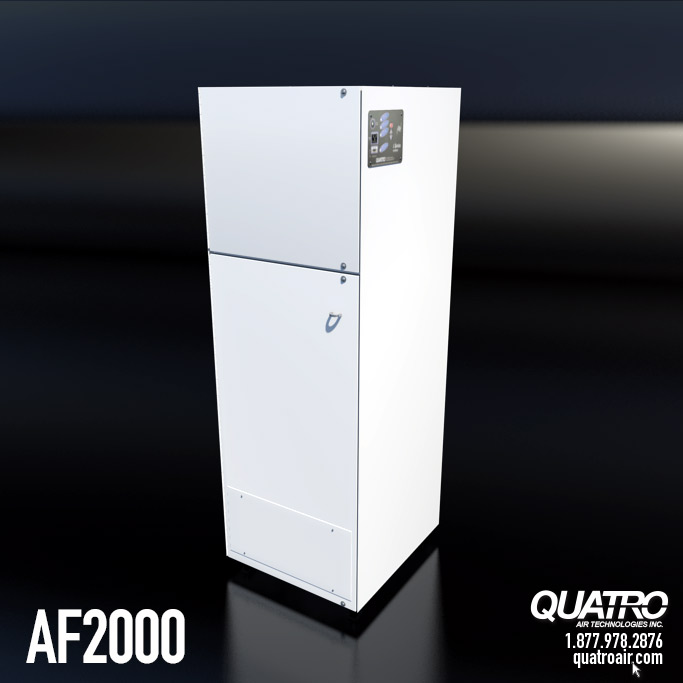

AF2000

High airflow filtration system for reflow wave soldering systems

• The AF series contains bulk carbon modules and 12″ deep 99.97% HEPA filters
• High airflow allows for multiple oven pick up points
• Filters are easily changed (slide and glide) through hinged access door.
• AF2355-DM 230V, 20A, 1800CFM | AF2055-DM 120V, 12A, 900CFM | 24″W x 26″D x 71″H, 325 lbs
